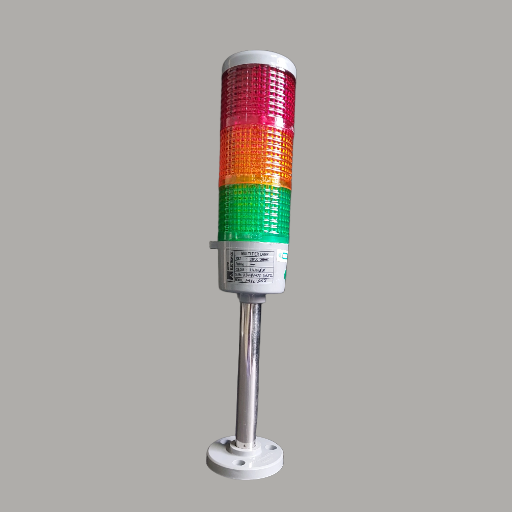

Warning Light - Multi-Tier/Tower Light
Indicating Every Heartbeat of Your Machine
Very low power consumption; Can be driven through PLC directly
Totally immune to vibrations
Excellent illumination in all directions
Large illuminated surface area
No false indication due to external light
 |  |
|---|
Maximise workplace safety and efficiency with this Industrial Waning Tower Light, also called Pillar Light or Multi-Tier Light. Featuring three bright LED layers in red, amber, and green, this industrial warning light is the perfect, reliable safety solution for machine status indication, process monitoring, or alert signalling in factories and warehouses.
The Altos Electronics multi-tier warning light offers easy installation and solid-state technology to ensure reliable performance in demanding environments.
Operating Voltage | 12V, 24VDC, 240VAC, 110VAC/DC OR As per client requirement |
|---|---|
Available Colours | Red, Green, Amber, Yellow, Blue, White |
Light Output | More than 1000 mcd. |

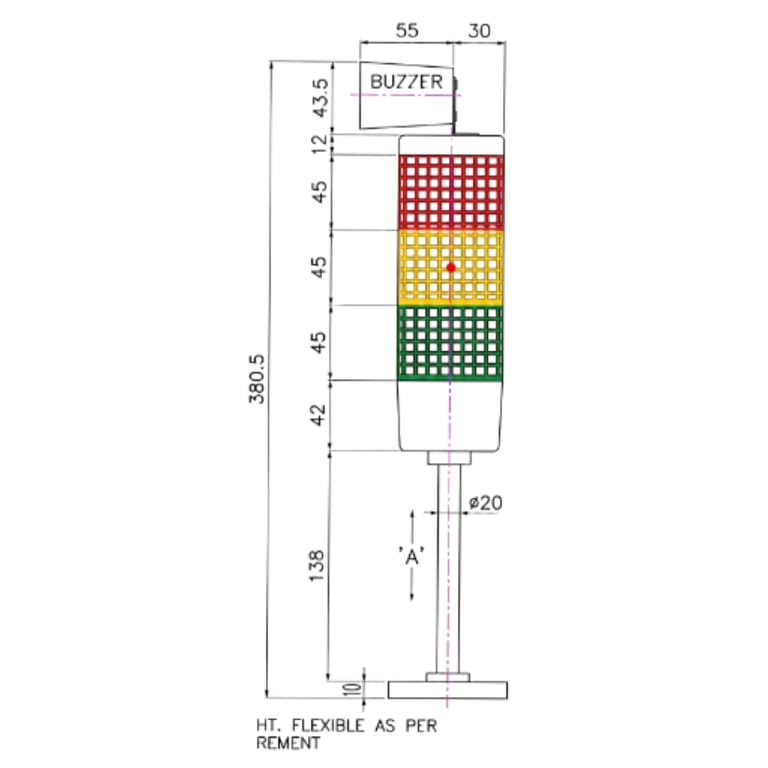

Dimensions | 298mm X 64mm for Three Tire Individual illuminated dimensions 50mm X 57mm |
Operating Range | -30% or +20% of operating voltage |
Operating Temp | -15 deg ºC To +75 ºC |
Housing Material | Internal Ribbed Polycarbonate |
Type | Single Tier, Two Tier up to Five Tier
|
Source of Light | Cluster of LEDs |
Visibility | All Around — 360° |
Ingress Protection | IP 55 (Dust & Water Tight) |
Current Consumption for each Illuminated Tier |
|
